- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Homeline breakers, cover, and aluminum bus bar included

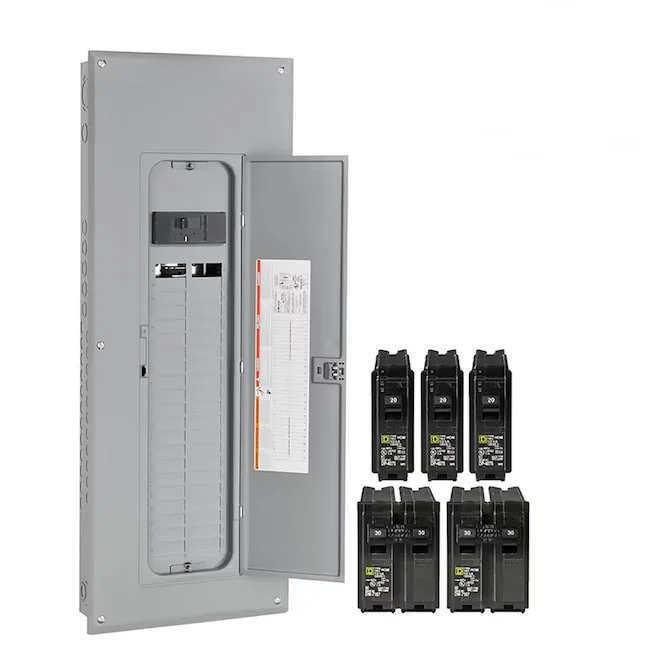

Square D Homeline 200 -Amp 40 -Spaces 80 -Circuit Indoor Main Breaker Plug-On Neutral Load Center (Value Pack)
The Square D by Schneider Electric Homeline Value Pack 200 Amp 40-Space 80-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes a cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Square D Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline breaker boxes are engineered for fast installation and wire savings.
- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Homeline breakers, cover, and aluminum bus bar included
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface indoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
| General |
| Manufacturer Color/Finish |
Gray |
Orientation |
Over/Under |
| Series Name |
Homeline |
Value Pack Contents |
Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface indoor cover |
| Type |
Main breaker |
Number of Spaces |
40 |
| Use Location |
Indoor |
Phase Type |
Single phase (120/240) |
| Mounting Type |
Combination |
Buss Bar Construction |
Aluminum |
| Usage |
Service entrance |
Circuits |
80 |
| Paintable |
No |
| Dimensions |
| Depth (Inches) |
3.75 |
Width (Inches) |
14.25 |
| Height (Inches) |
39.37 |
Amperage |
200 |
| Features |
| Cover Included |
Yes |
Plug-On Neutral |
Yes |
| Feed-Through Lugs |
No |
Value Pack |
Yes |
| Ground Bar Installed |
No |
| Compatibility |
| Brand/Model Compatibility |
Square D Homeline Brand Only |
