- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to 3 #10-14 equipment grounds

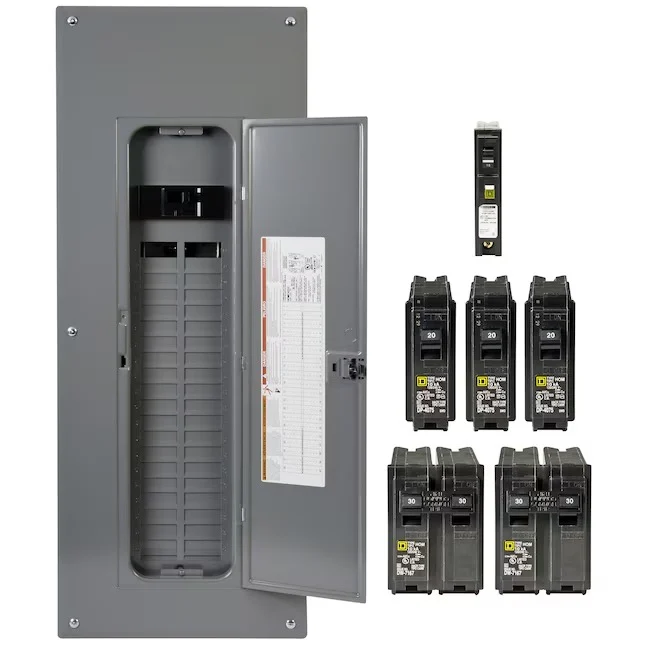

Square D HOM4080M200PC1AVP Homeline 200 -Amp 40 -Spaces 80 -Circuit Indoor Main Breaker Plug-On Neutral Load Center (Value Pack)
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to 3 #10-14 equipment grounds
- Accommodates plug-on secondary surge arrestor (sold separately)
- Rated 120/240-Volt AC and 22,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Orientation | Over/Under |
| Series Name | Homeline | Value Pack Contents | Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers, (1) HOM115PCAFI Homeline 15 Amp single-pole plug-on neutral CAFI circuit breaker and a combination flush/surface indoor cover |
| Type | Main breaker | Number of Spaces | 40 |
| Use Location | Indoor | Phase Type | Single phase (120/240) |
| Mounting Type | Combination | Buss Bar Construction | Aluminum |
| Usage | Service entrance | Circuits | 80 |
| Paintable | No | ||
| Dimensions | |||
| Depth (Inches) | 3.75 | Width (Inches) | 14.25 |
| Height (Inches) | 39.37 | Amperage | 200 |
| Features | |||
| Cover Included | Yes | Plug-On Neutral | Yes |
| Feed-Through Lugs | No | Value Pack | Yes |
| Ground Bar Installed | No | ||
| Compatibility | |||
| Brand/Model Compatibility | Square D Homeline Brand Only |
