- Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C
- NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads
- NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations

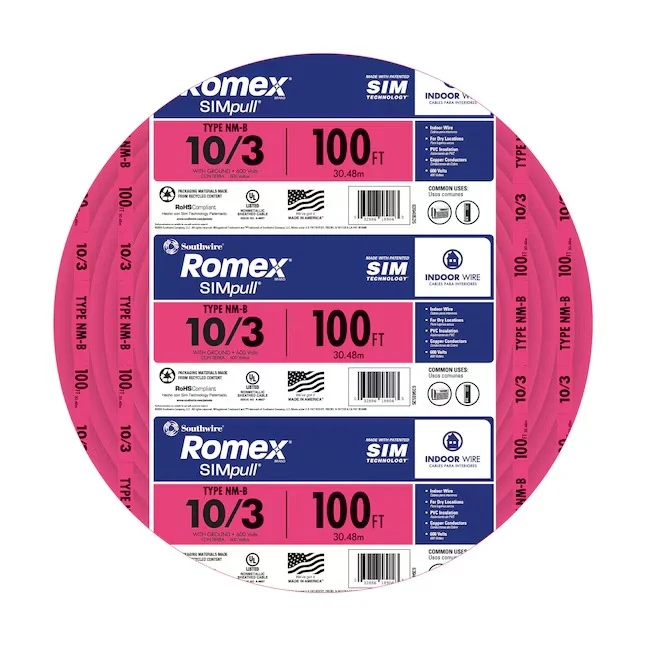

Southwire 100-ft 10 / 3 / Romex SIMpull Solid Indoor CU NM-B W/G Individual pack ( By-the-roll )
- Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C
- NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads
- NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
- Voltage rating for NM-B cable is 600 volts
- Copper conductors are annealed (soft) copper
- Southwire’s SIMpull® designed for easier pulling, resulting in easier installation
- UL listed
| General | |||
|---|---|---|---|
| Jacket Color | Pink | Voltage Rating | 600 |
| Series Name | Romex SIMpull | Wire Cut Type | By-the-roll |
| Sub-Brand | N/A | Jacket Material | Polyvinyl chloride |
| Wet Location Use | No | Number of Conductors | 3 |
| Package Quantity | 1 | Stranded or Solid | Solid |
| Package Type | Individual pack | Wire Gauge | 10 |
| Use Location | Indoor | Direct Burial | No |
| Number of Pairs | 0 | Ground Wire | Yes |
| Dimensions | |
|---|---|
| Cable Length (Feet) | 100 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Shielded | No |
| Fire Resistant | No | UV Resistant | No |
| Weatherproof | No | ||
| Maximum Amperage | 30 | Heat Resistant | No |
| Moisture Resistant | No |
| Brand |
Southwire |
|---|
