- Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C
- NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads
- NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations

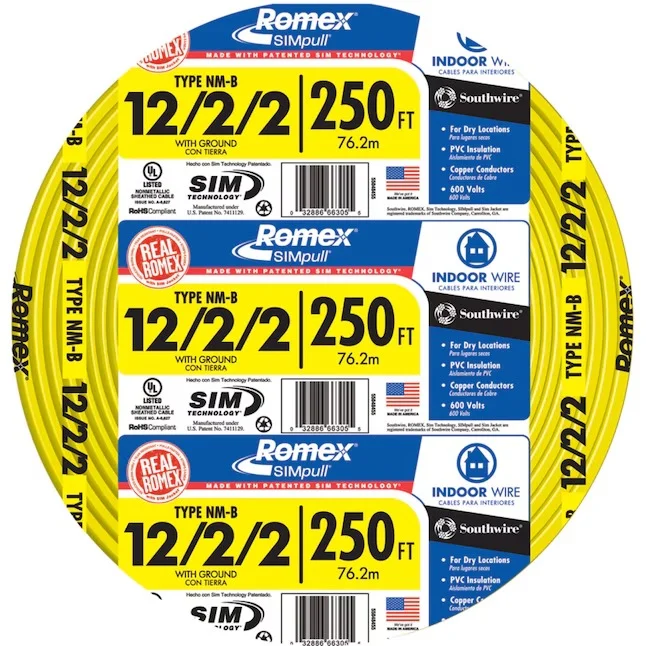

Southwire 250-ft 12 / 2 / 2 Romex SIMpull Solid Indoor CU NM-B W/G Individual pack ( By-the-roll )
Romex® SIMpull® NM-B has two, three and four conductors and available with two neutrals, construction designed for easier pulling.
- Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C
- NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads
- NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
- Voltage rating for NM-B cable is 600 volts
- Copper conductors are annealed (soft) copper
- Southwire’s SIMpull® designed for easier pulling, resulting in easier installation
- UL listed
| General |
| Jacket Color |
Yellow |
Wire Cut Type |
By-the-roll |
| Series Name |
Romex SIMpull |
Jacket Material |
Polyvinyl chloride |
| Sub-Brand |
N/A |
Number of Conductors |
2 |
| Wet Location Use |
No |
Stranded or Solid |
Solid |
| Package Quantity |
1 |
Wire Gauge |
12 |
| Package Type |
Individual pack |
Direct Burial |
No |
| Use Location |
Indoor |
Ground Wire |
Yes |
| Number of Pairs |
2 |
Number of Conductors (Wire 2) |
2 |
| Voltage Rating |
600 |
| Dimensions |
| Cable Length (Feet) |
250 |
| Features |
| Commercial/Residential |
Commercial/Residential |
Shielded |
No |
| Fire Resistant |
No |
UV Resistant |
Yes |
| Lowe’s Exclusive |
No |
Weatherproof |
No |
| Maximum Amperage |
20 |
Heat Resistant |
No |
| Moisture Resistant |
No |
