- Conductors are made of annealed (soft) copper
- PVC insulation and a nylon, color coded jacket
- Used outdoors for direct burial

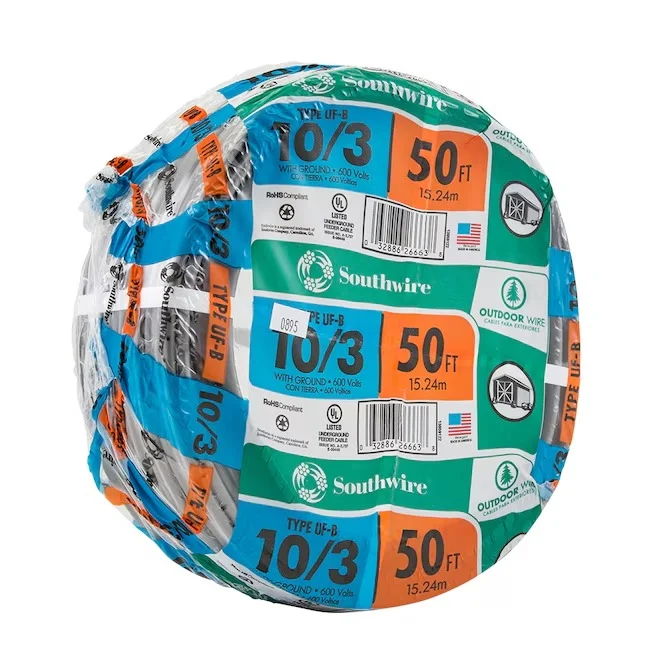

Southwire 50-ft 10 / 3 W/G ( By-the-roll )
Southwire’s copper UF-B cable is used in applications that include outside lamp posts, pumps and other loads. It can also be used for outbuildings such as garages and barns. UF-B feeds from a distribution point in an existing building. UF-B has a heat capacity of 90°C and is rated at 600-Volt. UL Listed.
- Conductors are made of annealed (soft) copper
- PVC insulation and a nylon, color coded jacket
- Used outdoors for direct burial
- Used indoors for wet or corrosive locations
- Jacketed with sunlight, moisture and fungus resistant gray PVC
| General |
| Sub-Brand |
N/A |
Number of Conductors |
3 |
| Use Location |
Indoor/Outdoor |
Wire Gauge |
10 |
| Voltage Rating |
600 |
Direct Burial |
Yes |
| Wire Cut Type |
By-the-roll |
Ground Wire |
Yes |
| Dimensions |
| Cable Length (Feet) |
50 |
Weight (lbs.) |
9.55 |
| Features |
| Commercial/Residential |
Commercial/Residential |
Moisture Resistant |
Yes |
| Fire Resistant |
No |
Shielded |
No |
| Maximum Amperage |
30 |
UV Resistant |
Yes |
