- Branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
- Conductor is suitable for use in dry locations at temperatures not to exceed 90°C
- Copper conductors are annealed (soft) copper, compressed strand, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)

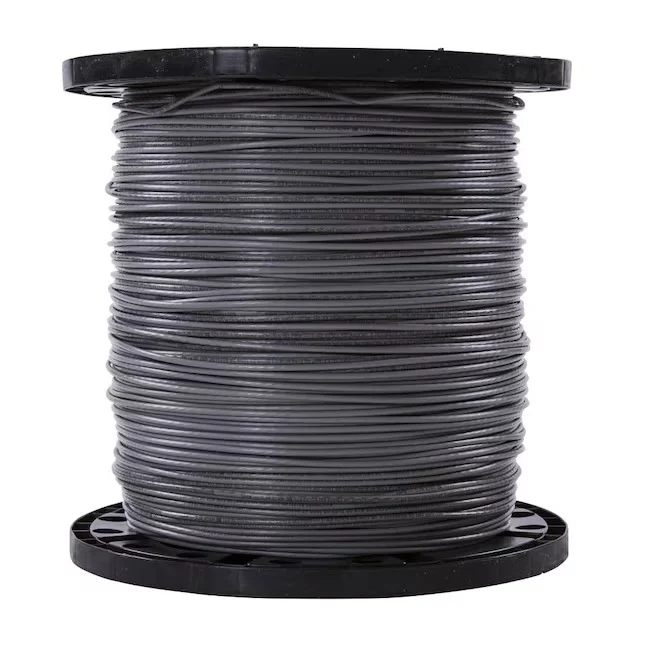

Southwire 2500-ft 12 -AWG Grey Stranded Copper THHN wire ( By-the-roll )
Southwire’s THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications.
- Branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
- Conductor is suitable for use in dry locations at temperatures not to exceed 90°C
- Copper conductors are annealed (soft) copper, compressed strand, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)
- Voltage for all applications is 600 volts
- Jacket is abrasion, heat, moisture, gasoline and oil resistant
- UL Listed and CSA certified
| General |
| Jacket Color |
Grey |
Jacket Material |
PVC (polyvinyl chloride), |
| Sub-Brand |
N/A |
Wire Type |
Stranded |
| Type |
THHN wire |
Wire Gauge |
12 |
| Insulation Material |
PVC (polyvinyl chloride) |
Conductor Material |
Copper |
| Voltage Rating |
600 |
Direct Burial |
No |
| Wire Cut Type |
By-the-roll |
Number of Strands |
19 |
| Dimensions |
| Cable Length (Feet) |
2500 |
| Features |
| Commercial/Residential |
Commercial/Residential |
Moisture Resistant |
Yes |
| Fire Resistant |
No |
Shielded |
No |
| Maximum Amperage |
20 |
UV Resistant |
No |
