- Conforms to NEC requirements for use in conduit and other recognized raceways for services, feeders and branch circuit wiring
- Annealed copper conductor
- Designed for wet or dry locations in temperatures not to exceed 194 ° Fahrenheit

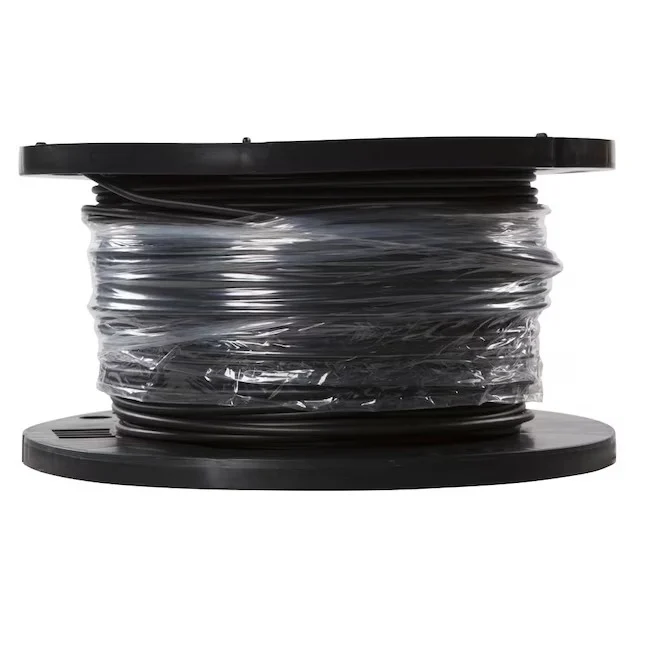

Southwire 500-ft 10 -AWG Copper Stranded Black XHHW Wire (By-the-roll)
Southwire type XHHW conductors are primarily used in conduit or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the NEC.
- Conforms to NEC requirements for use in conduit and other recognized raceways for services, feeders and branch circuit wiring
- Annealed copper conductor
- Designed for wet or dry locations in temperatures not to exceed 194 ° Fahrenheit
- Abrasion-, moisture-, and heat-resistant cross-linked polyethylene insulation
- Suitable for use in anesthetizing locations where a dielectric constant of 3.5 or less is required
- Sunlight-resistant
| General |
| Jacket Color |
Black |
Stranded or Solid |
Stranded |
| Sub-Brand |
N/A |
Wire Gauge |
10 |
| Voltage Rating |
600 |
Conductor Material |
Copper |
| Wire Cut Type |
By-the-roll |
Direct Burial |
No |
| Jacket Material |
Cross-linked polyethylene (XLP) |
Number of Strands |
7 |
| Dimensions |
| Cable Length (Feet) |
500 |
| Features |
| Commercial/Residential |
Commercial |
Moisture Resistant |
Yes |
| Fire Resistant |
No |
Shielded |
No |
| Maximum Amperage |
30 |
UV Resistant |
Yes |
