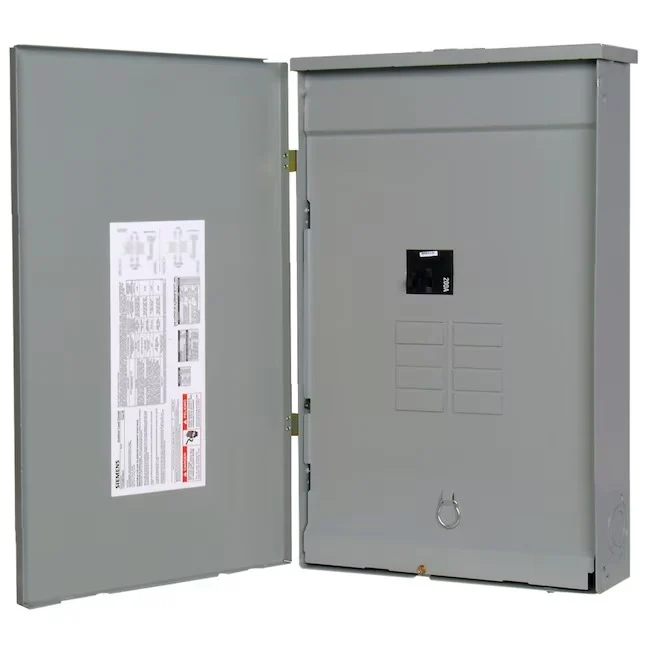

Siemens PN 200 -Amp 8 -Spaces 16 -Circuit Outdoor Convertible Main Breaker Panel Plug-On Neutral Load Center
Siemens introduces PN series load centers – a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PN series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim – these features were specifically engineered to decrease installation time and increase flexibility.
- The PN series load center includes two factory installed ground bar
- Plug-on neutral, for quick and simple breaker installation
- Copper bus
- Spacious with over 4 inches of wire bending space
- Secure sturdy hook-rail provides a reliable connection
- Single phase load center
- 100% Neutral and Ground positions based on number of circuits
- NEMA Type 3R outdoor enclosure
- UL Listed
| General |
| Manufacturer Color/Finish |
Gray |
Paintable |
Yes |
| Series Name |
PN |
Orientation |
Over/Under |
| Type |
Convertible main breaker panel |
Number of Spaces |
8 |
| Use Location |
Outdoor |
Phase Type |
Single phase (120/240) |
| Mounting Type |
Combination |
Buss Bar Construction |
Copper |
| Usage |
Service entrance |
Circuits |
16 |
| Dimensions |
| Depth (Inches) |
4.88 |
Width (Inches) |
14.25 |
| Height (Inches) |
23 |
Amperage |
200 |
| Features |
| Cover Included |
Yes |
Plug-On Neutral |
Yes |
| Feed-Through Lugs |
Yes |
Value Pack |
No |
| Ground Bar Installed |
Yes |
Voltage |
120 |
| Compatibility |
| Brand/Model Compatibility |
Siemens |
