- Side-by-Side construction; Surface Mount; Feed Thru Lugs included, Full Width
- For Overhead or Underground Service applications
- Check with local utility to confirm meter socket approval prior to ordering
- RX-type Hub Opening on Top End Wall with Cover Plate Installed (hubs sold separately)

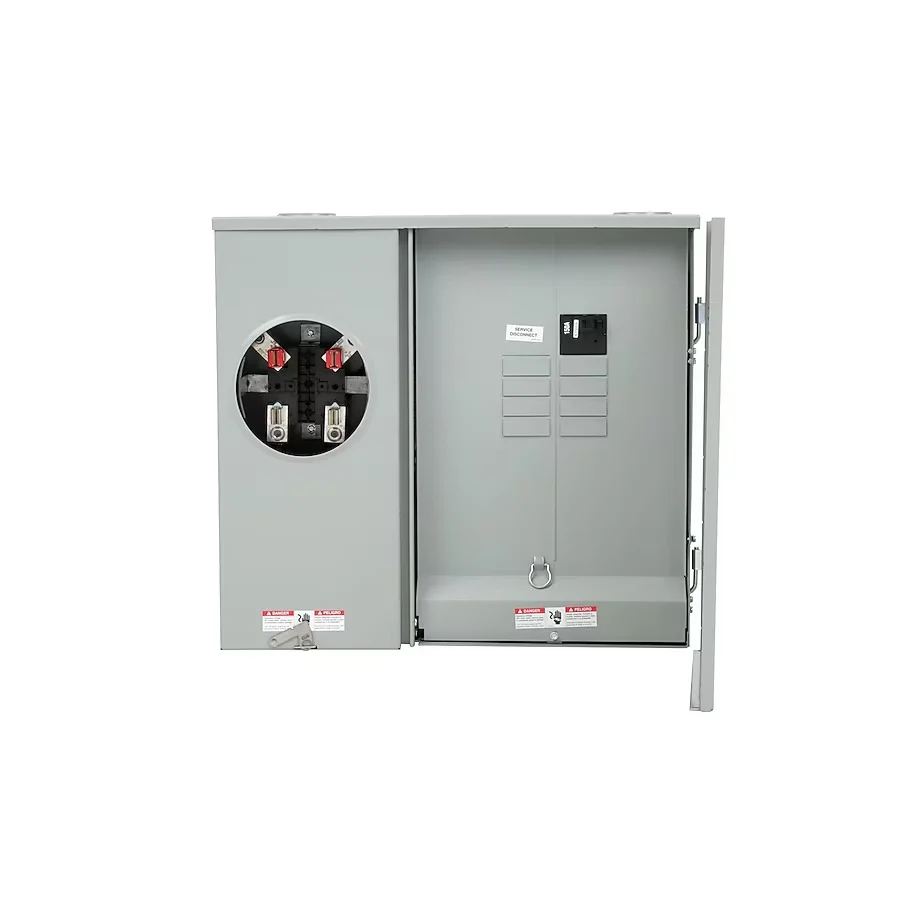

Siemens 200 -Amp 8 -Spaces 16 -Circuit Outdoor Main Breaker Meter Combo Load Center
This Siemens meter load center combination features a 200-Amp rated meter socket combined with a 200-Amp main breaker service disconnect, available branch circuits, and feed thru lugs. The extra circuits allow for outdoor circuits to be wired directly from this panel, saving wire and installation time. The enclosure is full loadcenter width.
- Side-by-Side construction; Surface Mount; Feed Thru Lugs included, Full Width
- For Overhead or Underground Service applications
- Check with local utility to confirm meter socket approval prior to ordering
- RX-type Hub Opening on Top End Wall with Cover Plate Installed (hubs sold separately)
- HC-type Hub Opening on Bottom End Wall (hubs sold separately)
- Ringless Type Meter Cover; No Bypass
- 120/240V, 1-Phase, 3-Wire, 4-Jaw
- UL Listed; 22,000 AIC rated
- Outdoor steel enclosure (NEMA Type 3R)
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Orientation | Side-by-side |
| Type | Main breaker meter combo | Number of Spaces | 8 |
| Use Location | Outdoor | Phase Type | Single phase (120/240) |
| Mounting Type | Surface | Buss Bar Construction | Aluminum |
| Usage | Service entrance | Circuits | 16 |
| Paintable | No | ||
| Dimensions | |||
| Depth (Inches) | 4.95 | Width (Inches) | 23.5 |
| Height (Inches) | 20.95 | Amperage | 200 |
| Features | |||
| Cover Included | Yes | Plug-On Neutral | No |
| Feed-Through Lugs | Yes | Value Pack | No |
| Ground Bar Installed | No |
| Brand |
Siemens |
|---|
