- Side-by-side construction; Surface Mount; EUSERC Compliant
- For Overhead or Underground Service applications
- Suitable for Solar Applications – Max 40A PV Input
- RX-type Hub Opening on Top End Wall with Cover Plate Installed (hubs sold separately)
- HC-type Hub Opening on Bottom End Wall (hubs sold separately)

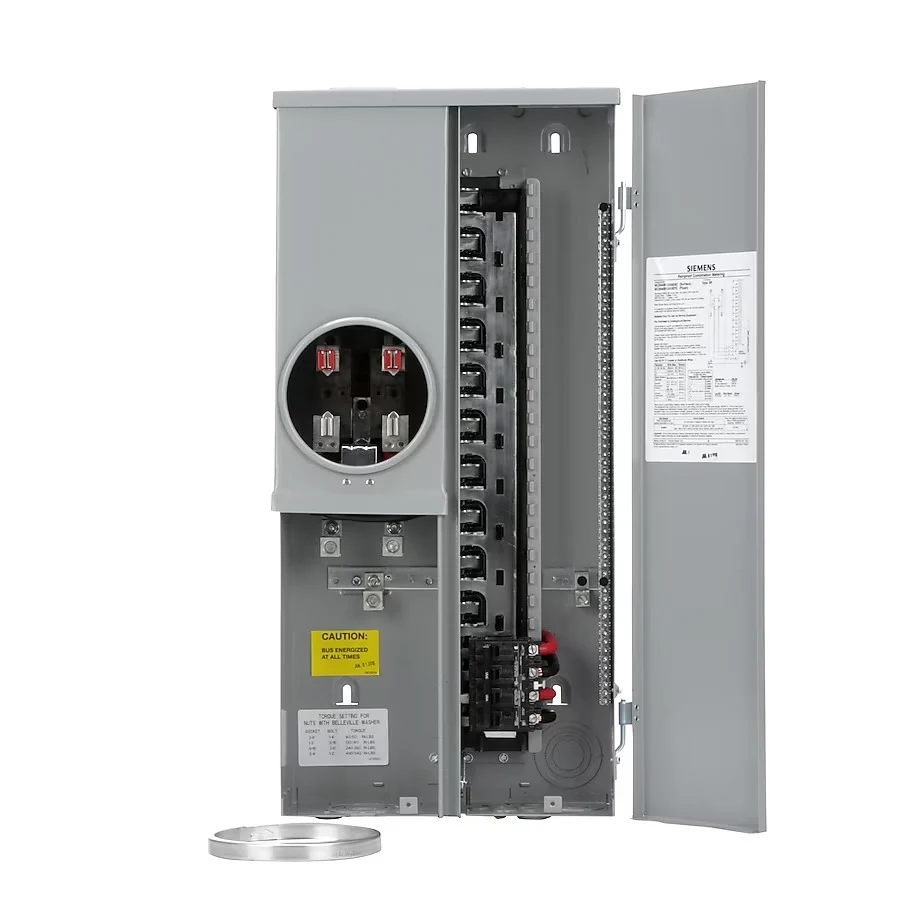

Siemens 200 -Amp 20 -Spaces 40 -Circuit Outdoor Main Breaker Meter Combo Load Center
This Siemens 200-Amp meter-load center combination is designed for use in utility areas that require EUSERC compliant devices. A 200 Amp main breaker is installed along with a 20 space, 40 circuit interior. The enclosure is surface mount, NEMA 3R (outdoor) rated and is fabricated from steel with a powder coating finish. The meter cover is ring type and the ring is provided. The panel is rated for overhead or underground feed applications. For overhead feed, use Siemens RX Type Hubs. For bottom feed applications, use Siemens HC Type Hubs. Compatibility with the electric service provider (utility) should be checked prior to ordering.
- Side-by-side construction; Surface Mount; EUSERC Compliant
- For Overhead or Underground Service applications
- Suitable for Solar Applications – Max 40A PV Input
- RX-type Hub Opening on Top End Wall with Cover Plate Installed (hubs sold separately)
- HC-type Hub Opening on Bottom End Wall (hubs sold separately)
- Ring Type Meter Cover; No Bypass
- 120/240V, 1-Phase, 3-Wire, 4-Jaw
- NEMA Type 3R Outdoor Enclosure
- Check with local utility to confirm meter socket approval prior to ordering
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Orientation | Side-by-side |
| Type | Main breaker meter combo | Number of Spaces | 20 |
| Use Location | Outdoor | Phase Type | Single phase (120/240) |
| Mounting Type | Surface | Buss Bar Construction | Aluminum |
| Usage | Service entrance | Circuits | 40 |
| Paintable | No | ||
| Dimensions | |||
| Depth (Inches) | 6 | Width (Inches) | 16.5 |
| Height (Inches) | 33.25 | Amperage | 200 |
| Features | |||
| Cover Included | Yes | Plug-On Neutral | No |
| Feed-Through Lugs | No | Value Pack | No |
| Ground Bar Installed | No | ||
| Compatibility | |||
| Brand/Model Compatibility | Fits Most |
| Brand |
Siemens |
|---|
