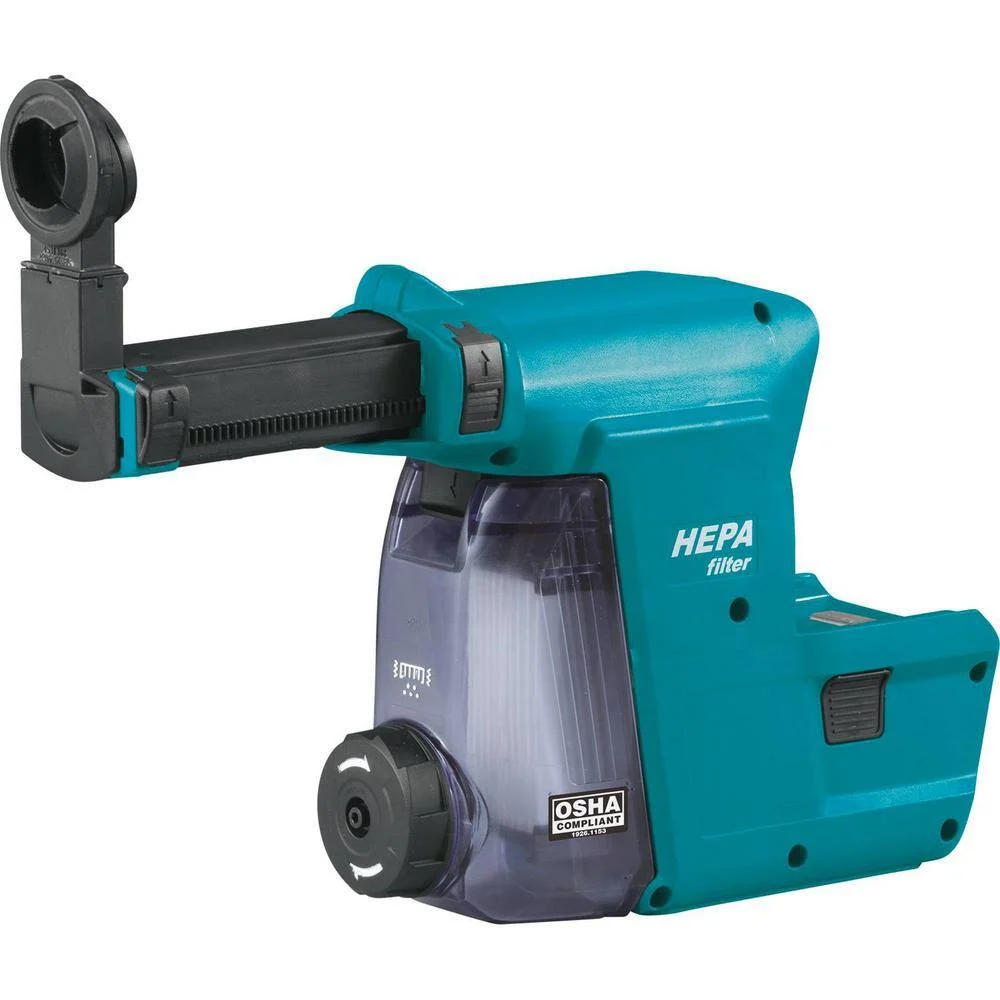

Makita XRH01 Dust Extractor Attachment with HEPA Filter Cleaning Mechanism

• OSHA Table 1 compliant on-board dust extractor
• Powered by a separate motor to maintain peak performance
• For use with Makita 18V LXT® Rotary Hammer model XRH01

Makita XRH01 Dust Extractor Attachment with HEPA Filter Cleaning Mechanism

The Dust Extractor Attachment with HEPA Filter (model DX06) is for use with the 18V LXT Lithium-Ion Cordless Brushless 1 in. Rotary Hammer (XRH01Z, sold separately). The DX06 Dust Collection Vacuum Attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. The Dust Extractor Attachment is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance.The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.

• OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
• Extractor is powered by separate motor allowing the rotary hammer to consistently maintain peak drilling performance
• Captures concrete dust during drilling; activated by the tool and provides a 3-second delay to help capture remaining dust
• Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
• Extraction extension allows drilling up to 3-1/2 in. deep and up to 15/16 in. diameter holes
• Depth stop adjustment button allows for accurate drilling depth
• Transparent dust container provides needed visibility in determining container fullness
• Compatible with Makita 18V LXT Rotary Hammer model XRH01
