- Maximum crosscut up to 2 in x 12in (dimensional) at 90 degrees and 2 in x 8 in at 45
- Miter cuts up to 55 degrees left and 60 degrees right with 10 positive stops are most used angles
- Upfront bevel lock handle for accurate, convenient bevel angle adjustments

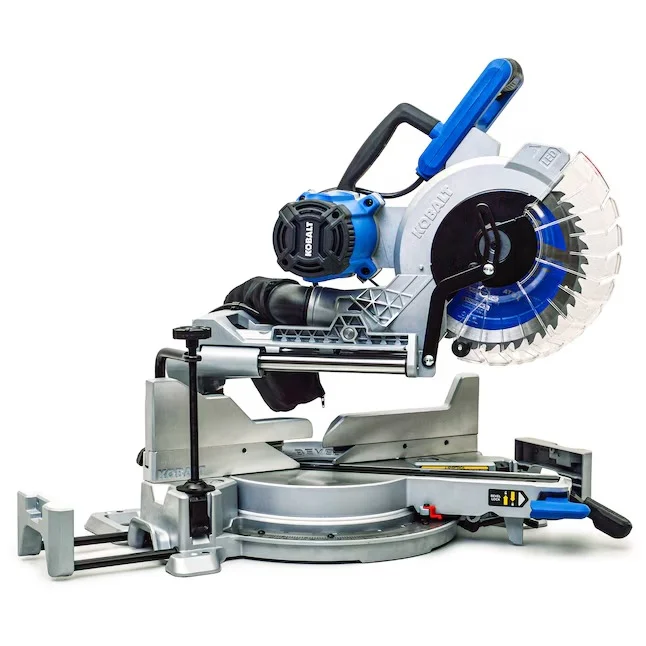

Kobalt Compact 10-in 15-Amp Dual Bevel Sliding Compound Corded Miter Saw
Innovative compact rail design reduces work space required for operation of saw. Three year limited warranty. Includes: 40 tooth carbide tipped saw blade, blade wrench, dust bag, safety clamp, retractable die-cast aluminum extensions, manual.
- Maximum crosscut up to 2 in x 12in (dimensional) at 90 degrees and 2 in x 8 in at 45
- Miter cuts up to 55 degrees left and 60 degrees right with 10 positive stops are most used angles
- Upfront bevel lock handle for accurate, convenient bevel angle adjustments
- Front handle cam design for quick, accurate miter lock and Detent override
- LED cut-line indicator for quick and accurate cut alignment
- Powerful 15 amp ball bearing motor, Delivers 4,450 RPM for molding and framing cuts
- Dual slide rail system with linear bearings for smooth and accurate operation
- Bevel cutting up to 48 degrees left and right
- Tall, sliding fence support nested crown molding up to 5-3/4 in and baseboard up to 4-1/2 in against the fence
| General |
| Series Name |
Compact |
Power Source |
Electric |
| Sub-Brand |
N/A |
| Dimensions |
| Arbor Diameter |
5/8-in |
Length (Inches) |
24 |
| Bevel Capacity (Degrees) |
48 |
Saw Blade Diameter |
10-in |
| Cord Length (Feet) |
6 |
Tool Weight (lbs.) |
43 |
| Depth of Cut at 45 Degrees (Inches) |
3.5 |
Width (Inches) |
25 |
| Depth of Cut at 90 Degrees (Inches) |
3.5 |
Amperage (Amps) |
15 |
| Height (Inches) |
25 |
| Features |
| Bevel |
Dual |
Maximum Miter Cut – Right (Degrees) |
60 |
| Bevel Lock Style |
Clamp |
Maximum Speed (RPM) |
4450 |
| Blade Included |
Yes |
Miter Stop |
Yes |
| Compound |
Yes |
Number of Teeth |
40 |
| Cordless |
No |
Power Rating (HP) |
0 |
| Dust Handling |
Port |
Quick Release Vise |
No |
| Electric Brake |
Yes |
Slide |
Yes |
| Folding |
No |
Sliding Fence |
Yes |
| Laser Guide |
No |
Spindle Lock |
No |
| Maximum Miter Cut – Left (Degrees) |
55 |
Worm Drive |
No |
