All FasNSeal® (single-wall) vent lengths and components feature patented built-in mechanical locking band and triple-lipped directional gaskets. All pipes and components are engineered with smooth clean welds located 90° from mechanical locking bands. This construction feature allows for ease of installation. The ½” air space between the inner and outer wall on FasNSeal® W2 helps to reduce the clearance to combustibles in addition to creating a heat shield for additional safety.

All FasNSeal® components which come in contact with exhaust gases and condensates are now silicone free. This important design and manufacturing feature greatly reduces the chances of system breakdown and failure. The main problems with silicone are there are too many adhesion factors which are very difficult to control and the process of binding similar materials with an epoxy, which can weaken the bond over time.

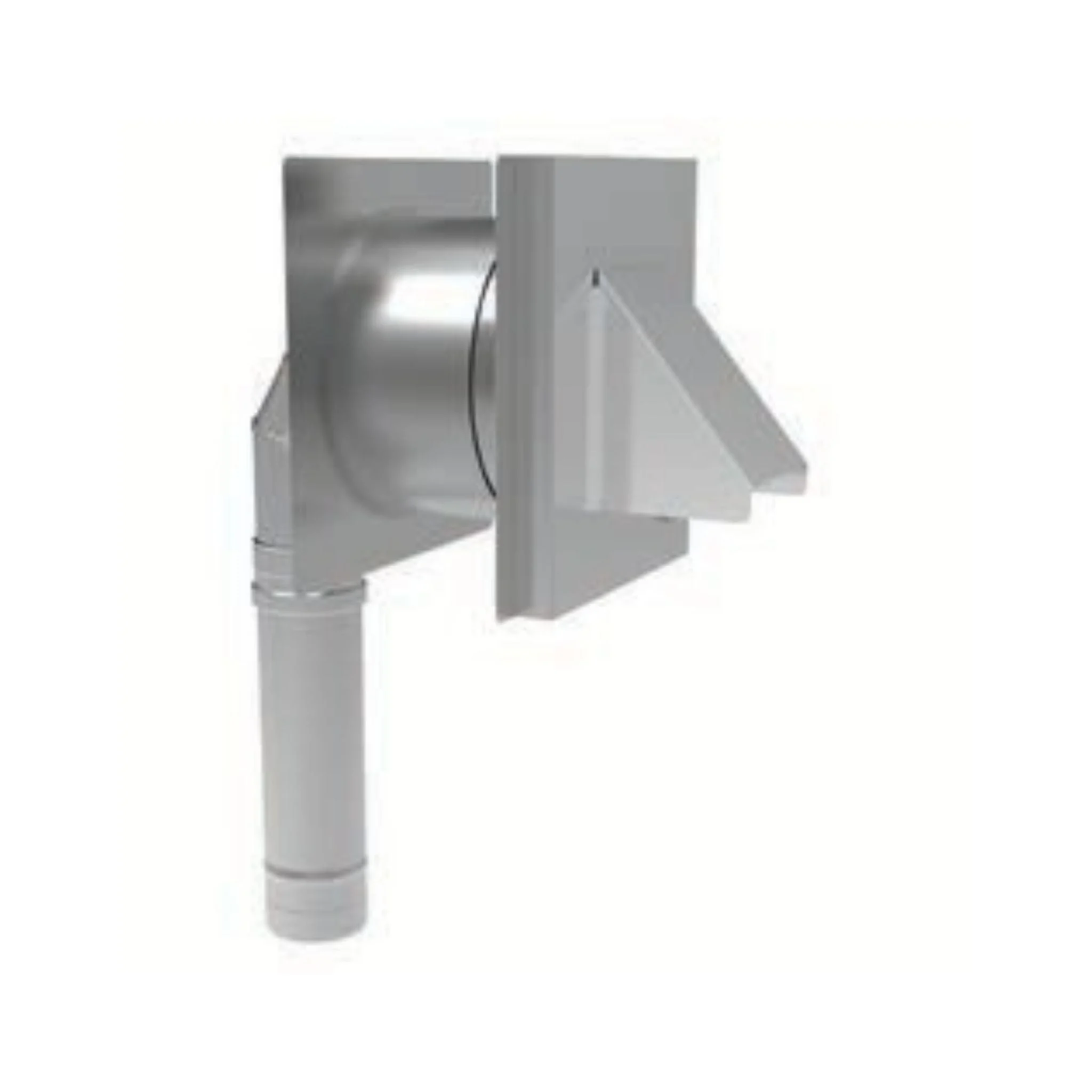

What’s Included

• Wall Thimble w/ Termination
• Adjustable 90° Elbow
• Universal Appliance Adapter

Features

• Available in 3” and 4”vent diameters.
• Use to vent wall mounted boilers or tankless water heaters.
• Terminates through-the-wall only.
• Adjust vertically from 16 1/2” to 21” and horizontally from 8” to 12 1/2”.
• Compatible with most gas-burning appliances
• For use with natural gas or propane Categories II, III, and IV appliances or Canada’s Type BH Gas Vent Systems
