All FasNSeal® (single-wall) vent lengths and components feature patented built-in mechanical locking band and triple-lipped directional gaskets. All pipes and components are engineered with smooth clean welds located 90° from mechanical locking bands. This construction feature allows for ease of installation. The ½” air space between the inner and outer wall on FasNSeal® W2 helps to reduce the clearance to combustibles in addition to creating a heat shield for additional safety.

All FasNSeal® components which come in contact with exhaust gases and condensates are now silicone free. This important design and manufacturing feature greatly reduces the chances of system breakdown and failure. The main problems with silicone are there are too many adhesion factors which are very difficult to control and the process of binding similar materials with an epoxy, which can weaken the bond over time.

What’s Included

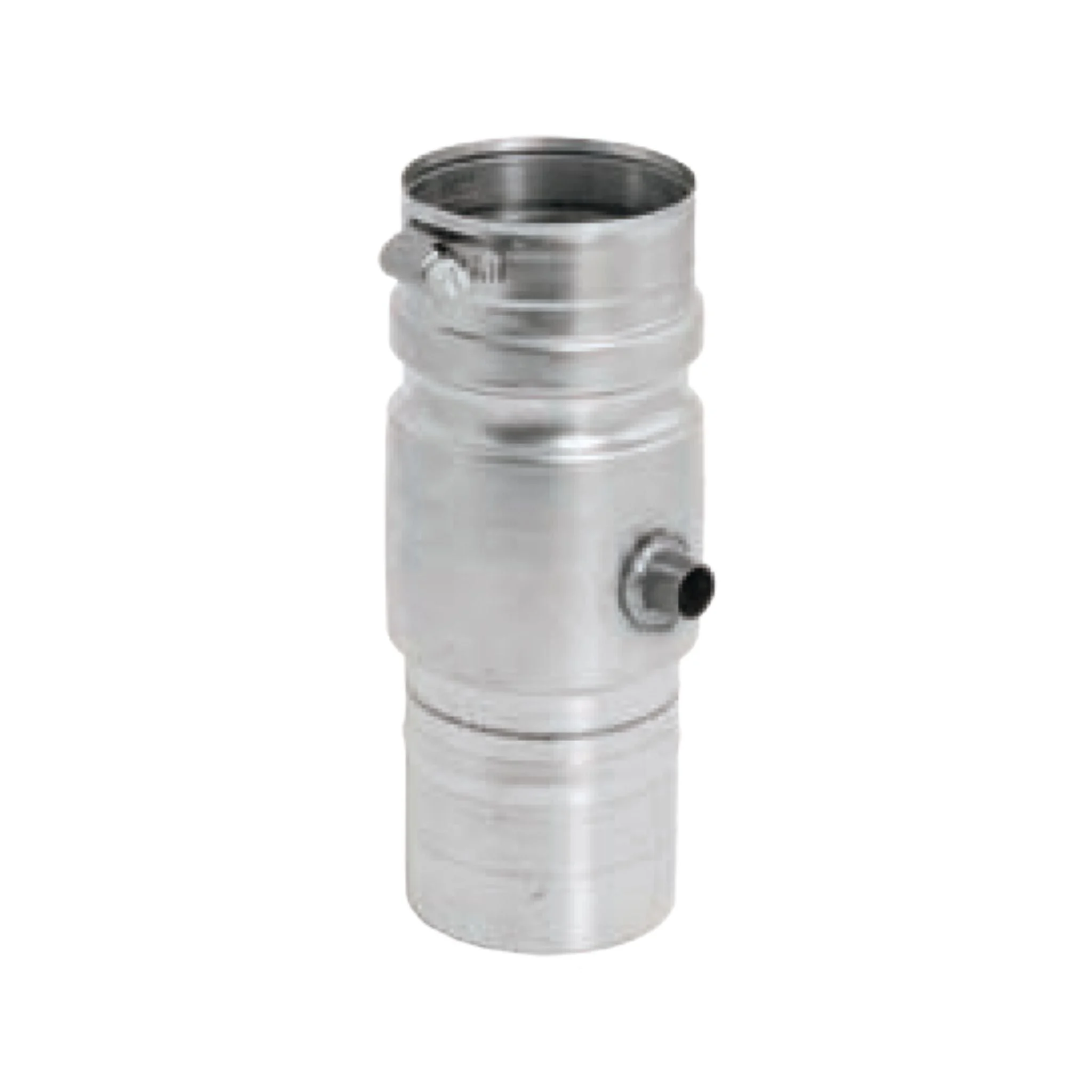

• Universal Condensate Drain

Features

• Available in 3″ – 16″ diameter
• 3”-5” diameters have 5/8” straight tube; 6”-16” diameters have a 1” IPS Fitting.
• Available in 29-4C and 316L Stainless Steel
• Use to properly manage corrosive condensates common with high efficiency gas appliances.
• For best results, install close to the appliance.
• Can be used horizontally, vertically, or any angle in between.
• Use to vent Category II, III, and IV gas burning appliances.

Specifications

Technical Dimensions
