- Brushless motor for efficient performance and runtime
- E-switch protection when the on/off trigger switch has a no-volt release function; in the event of a power outage or other unexpected shut down, the trigger switch will need to be cycled (turned off and then on) to restart the tool

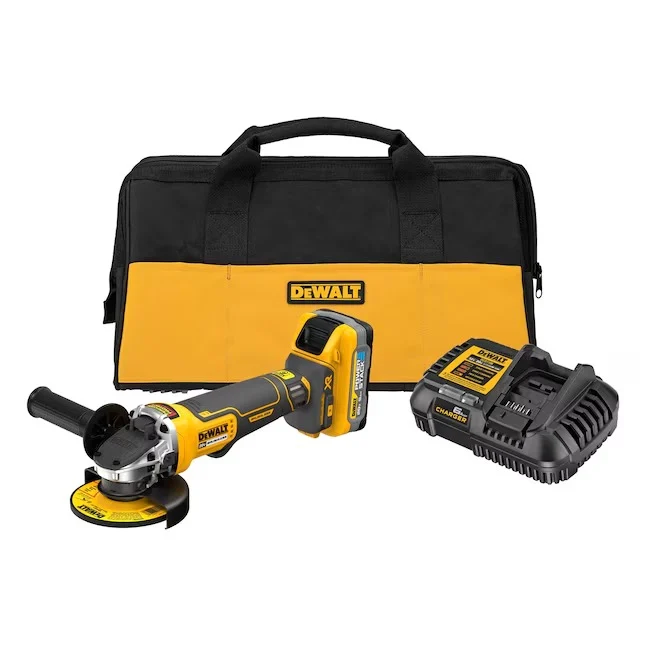

DEWALT DCG413H1 XR 4.5-in 20-volt max Paddle Switch Brushless Cordless Angle grinder
This brushless small angle grinder requires no time changing brushes, and offers a longer motor life. It offers a high level of protection. Its break stops the wheel in 2 seconds or less. The kickback Break engages maximum force to stop the wheel when there is a pinch, stall, or bind-up to reduce kickback. The grinder will also shut off in those events to further protect the user. This kit includes our most powerful battery in its class, the 20V MAX* DEWALT® POWERSTACK™ 5.0 Ah battery utilizing revolutionary pouch cell technology to deliver 50% more power, 50% more work per charge, and 2X the lifespan. The DEWALT® DCBP520 is compatible with all 20V MAX* tools and chargers.
- Brushless motor for efficient performance and runtime
- E-switch protection when the on/off trigger switch has a no-volt release function; in the event of a power outage or other unexpected shut down, the trigger switch will need to be cycled (turned off and then on) to restart the tool
- Kickback brake engages when a pinch, stall, or bind-up event is sensed and the electronic brake engages with maximum force to quickly stop the wheel, reduce the movment of the grinder and shut the grinder off
- Two stage trigger requires two actions to activate tool
- Brake stops wheel in 2 seconds or less on average
- More Efficient: Battery is 50% more efficient making it DEWALT®’s most efficient battery in its class**
- Durable Design: Battery has non-marring over-molded rubber base also helps to protect finished surfaces
- Long-lasting: Battery has 2x lifespan provides more overall investment value
- At-a-Glance-Charge-Status: Quickly check state-of-charge on your battery with 3-LED fuel gauge
| General |
| Battery Voltage |
20-volt max |
Handle Type |
2-Position Side Handle |
| Color/Finish Family |
Yellow |
Housing Material |
Metal |
| Sub-Brand |
XR |
Case Type |
Bag |
| Type |
Angle grinder |
Gearing Type |
Single Speed |
| Battery Type |
Lithium ion (Li-ion) |
Switch Type |
Paddle |
| Package Contents |
(1) DCG413 20V MAX XR Brushless 4-1/2-in Small Angle Grinder, (1) DCBP520 DEWALT POWERSTACK 5.0Ah Battery, (1) DCB1106 Charger, (1) Kit Bag, (1) Side Handle, (1) Hex Key, (1) Inner and outer flange, (1) 4-1/2-in Type 27 guard |
| Dimensions |
| Arbor Diameter |
5/8-in |
Wheel Diameter (Inches) |
4.5 |
| Cord Length (Feet) |
0 |
Width (Inches) |
6.29 |
| Length (Inches) |
12.2 |
Amperage (Amps) |
0 |
| Weight (lbs.) |
3.75 |
| Features |
| Accessories Included |
Yes |
Maximum RPM (RPM) |
9000 |
| Adjustable Handle |
Yes |
Motor Bearings |
Metal |
| Brushless |
Yes |
Number of Batteries Included for Tool |
1 |
| Charge Time (Hours) |
1 |
Overload Protection |
Yes |
| Charger Included |
Yes |
Replaceable Brushes |
No |
| Cordless |
Yes |
Side Handle |
Yes |
| Electronic Speed Control |
No |
Spindle Lock |
Yes |
| Grinding Wheel Included |
Yes |
Variable Speed |
No |
| Hybrid Capable |
No |
