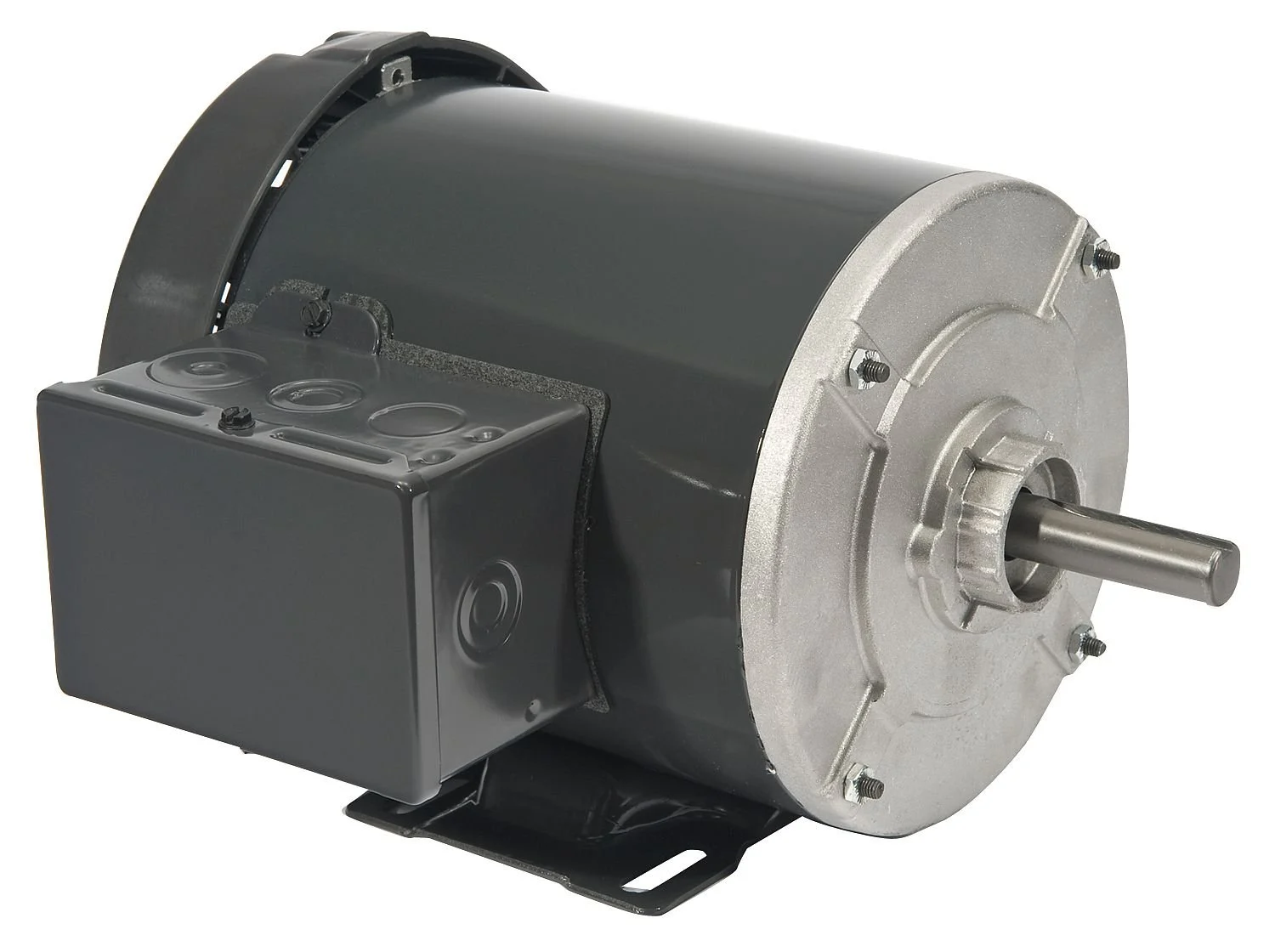

Dayton 5K618 Motor,1/2 HP,General – 5K618

• Brand Dayton
• Model Name G0847673
• Speed 1725 RPM
• Voltage 115 Volts
• Horsepower 0.5 Horsepower

Dayton 5K618 Motor,1/2 HP,General – 5K618

General Purpose Motor Single Phase Motor Design Split Phase 1/2 hp 1/4 hp HP Nameplate RPM 1725/1140 No. of Speeds 2 Voltage 115V AC Full Load Amps 7.2/5.0 A 56 Frame Hz 60 Hz Motor Service Factor 1 Max. Ambient Temp. 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Totally Enclosed Fan Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Shaft Design Keyed Motor Frame Material Steel
