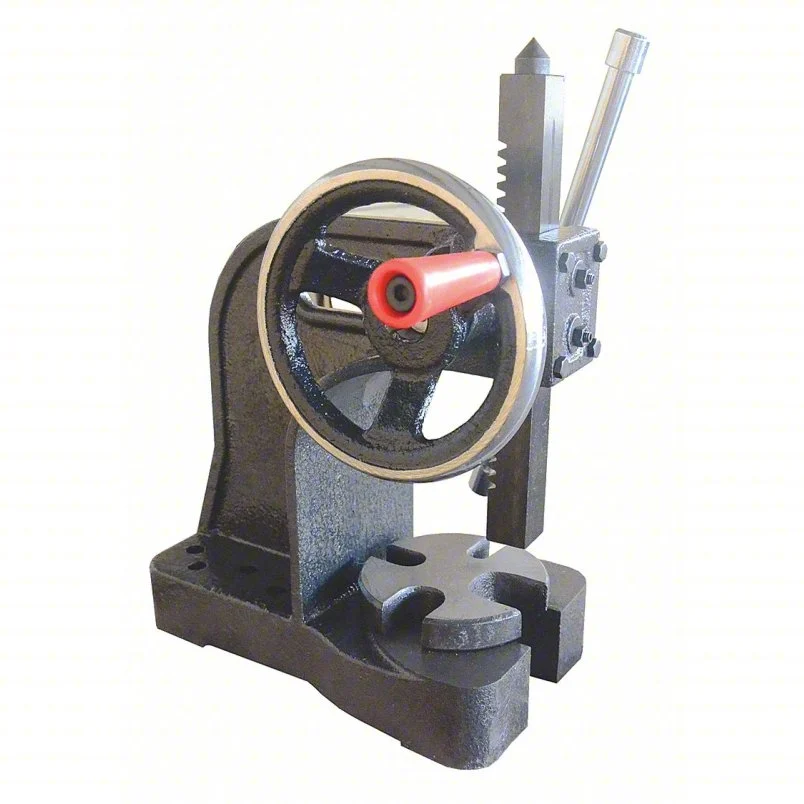

DAYTON 4Z328 Arbor Press: 1 ton Force in Tons, 8 in Swing (In.), 5-3/4 x 4-1/4 in, 45/64 to 1-27/64 in

• Force in Tons 1 ton.
  Swing (In.) 8 in.
• Table Work Surface (In.) 5-3/4 x 4-1/4 in.
  Item Arbor Press.
• Construction Cast iron.

DAYTON 4Z328 Arbor Press: 1 ton Force in Tons, 8 in Swing (In.), 5-3/4 x 4-1/4 in, 45/64 to 1-27/64 in

Arbor Press, Force in Tons 1 ton, Swing (In.) 8 in, Table Work Surface (In.) 5-3/4 x 4-1/4 in, Anvil Dia. Work Area (In.) 4 1/2 in, Range of Slot Widths (In.) 45/64 to 1-27/64 in, Max. Work Height (In.) 6 in, Ram Dimensions (In.) 1 x 1 in, Ram Hole Dia. x Depth (In.) 1/2 x 1, Height (In.) 11 in, Width (In.) 6 1/8 in, Depth (In.) 10 1/2 in, Base Size (In.) 6-1/8 x 10-1/2 in, Cast Iron Construction

• Force in Tons 1 ton
  Swing (In.) 8 in
• Table Work Surface (In.) 5-3/4 x 4-1/4 in
  Item Arbor Press
• Construction Cast iron
  Features Large-toothed Rack, Removable 4 Position Rotating Anvil, Speed Wheel for Repetitive Pressing Applications. A magnetic insert to hold the punch.
• Anvil Dia. Work Area (In.) 4 1/2 in
  Range of Slot Widths (In.) 45/64 to 1-27/64 in
  Base Size (In.) 6-1/8 x 10-1/2 in
• Max. Work Height (In.) 6 in
  Height (In.) 11 in
  Width (In.) 6 1/8 in
• Depth (In.) 10 1/2 in
  Ram Hole Dia. x Depth (In.) 1/2 x 1
• Ram Dimensions (In.) 1 x 1 in
