- 4.7 Gal. steel air tank
- Lightweight (35 lbs.) and very easy to transport

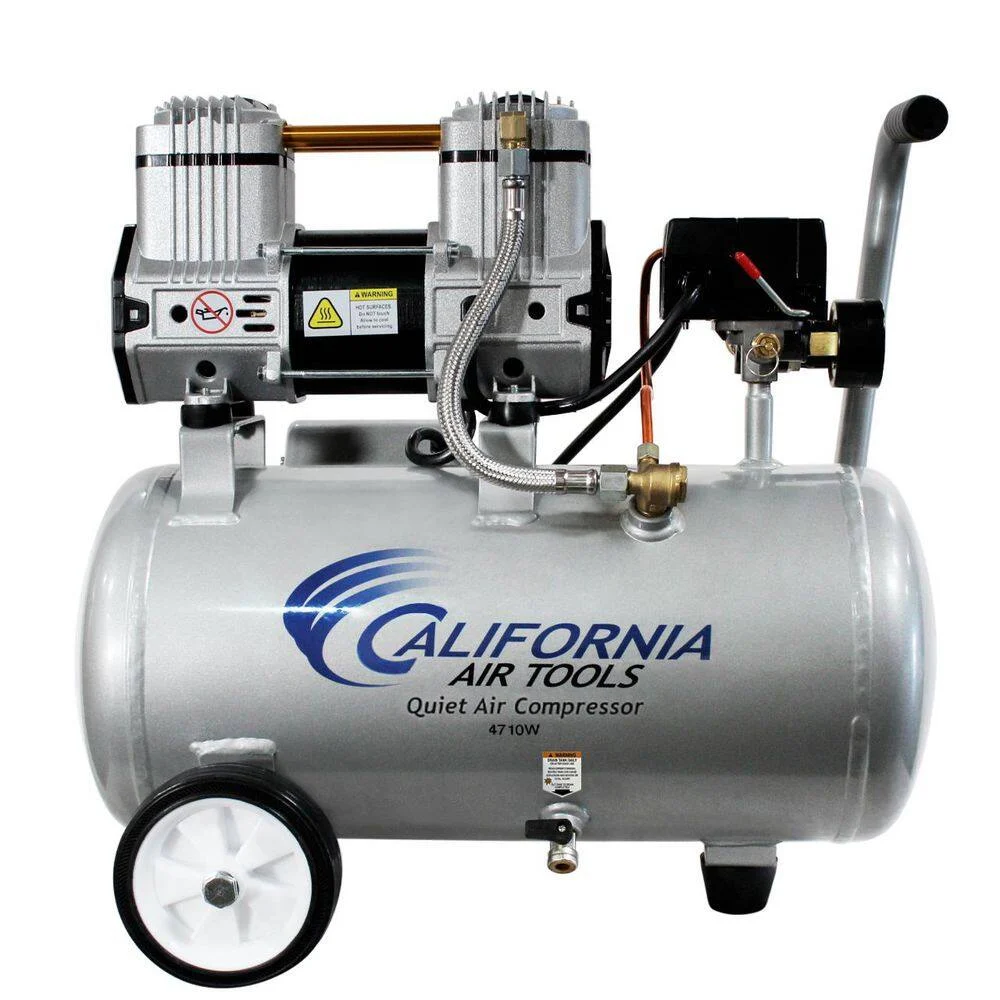

California Air Tools 4710W 4.7 Gal. 1.0 HP Quiet and Oil-Free Steel Air Tank Electric Air Compressor 135 MAX PSI
The 4710W 4.7 Gallon 1.0 Hp Quiet Air Compressor is ideal for Small Business, DIY and Homeowner customers.The Oil-Free Dual Piston Pump System is engineered for high performance and durability.The 4.7 Gallon Steel Air Tank is Lightweight (35 lbs) and very easy to transport.The CAT-4710W Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 1000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures and uneven terrains.
- Oil-free pump – cleaner air for better tool operation.less maintenance and costs
- 2-pressure control gauges
- One female industrial “push to connect” quick connector, 1/4 in. NPT(use industrial male fitting, 1/4 in. npt, to connect to air compressor)
- Thermal overload protector
- Working pressure 105-135 psi (kick on 105 ± 5 psi)
- 135 psi maximum pressure
- 110v / 60 hz
- Low amp draw – 7.5 amps
- Time to fill tank from empty to full – 78 seconds
- Recovery time from 100 PSI to 130 PSI – 51 seconds
- Less heat which dissipates more efficiently
- Duty cycle – 70/30*
- 4.7 gal. steel air tank
- L (23 in. ) x W/D (13 in. ) x H (20 in. )
- 35 lbs.
- Handle and wheels for ease of portability
- 76 dB noise level
- 1-year limited warranty
Dimensions
| Product Depth (in.) |
18 in |
| Product Height (in.) |
18 in |
| Product Width (in.) |
9 in |
Details
| Air Delivery SCFM @ 40PSI |
3 |
| Air Delivery SCFM @ 90PSI |
2 |
| Application Use |
Air Brushing, Blow Cleaning, Brad Nailing, Finish Nailing, Framing Nailing, Hobby Nailing, Hobby Painting, Spraying, Stapling |
| Battery Amp Hours |
No Battery |
| Battery/Charger |
Tool Only |
| Charger Included |
Charger Not Included |
| Compressor Tank Capacity (gal.) |
4.7 gal |
| Compressor Type |
Contractor |
| Compressor Volume Rating |
Quiet |
| Compressor/Air Tool Features |
Oil Free Compressor, Tank Pressure Gauge, Universal Quick Connectors |
| Decibel Rating (Outdoor) |
76 dBA |
| Horsepower (hp) |
1 hp |
| Included in Combo |
Compressor Only |
| Lubrication Type |
Oil less |
| Maximum Pressure (PSI) |
132 PSI |
| Number of Total Batteries Included |
0 |
| Portable |
Yes |
| Power Source |
Electric |
| Power Type |
Corded Electric |
| Product Weight (lb.) |
33 lb |
| Stage Count |
Single Stage |
| Tank Style |
Hot Dog |
Additional Resources
From the Manufacturer
- Warranty
- Use and Care Manual
| Brand |
California Air Tools
|
