- Designed as one of the quietest air compressors in the industry
- Oil-free pump 3000 hours before service
- Lightwieght aluminum twin tank (44 lbs.)

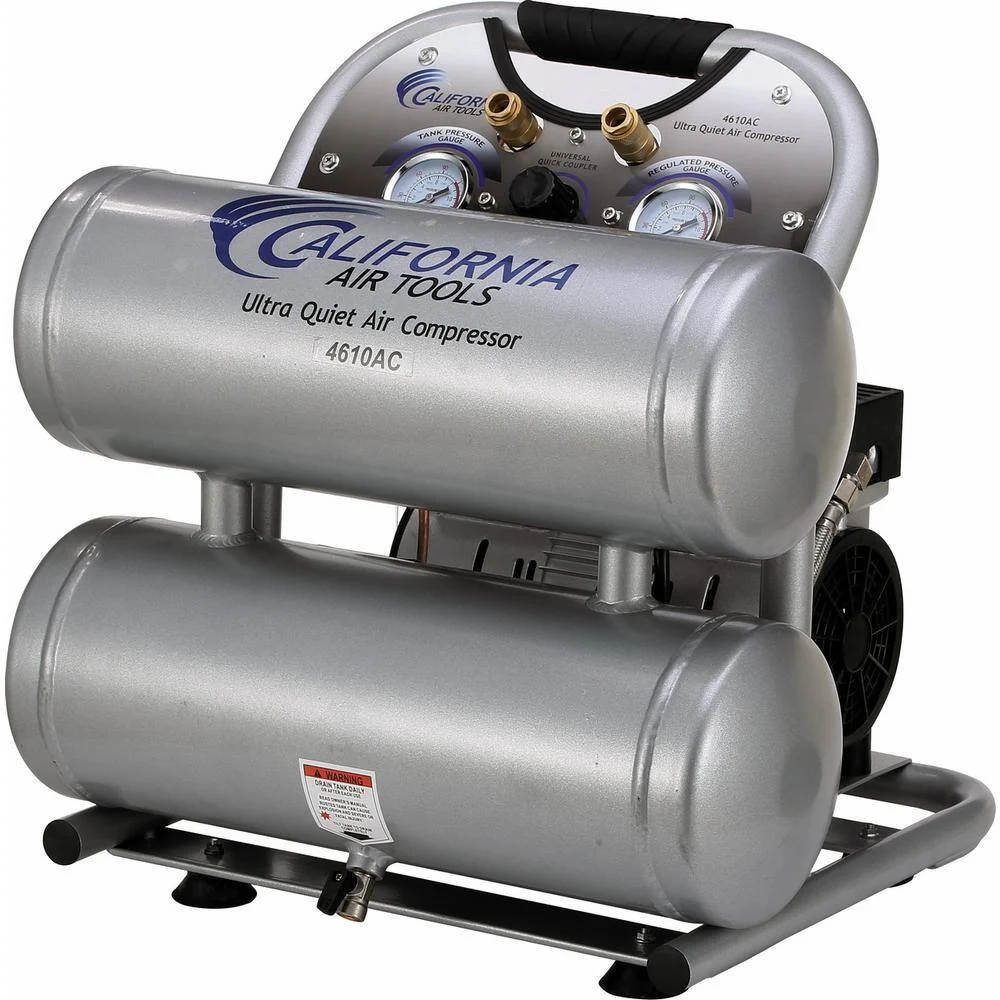

California Air Tools 4610AC Ultra Quiet and Oil-Free 1.0 Hp, 4.6 Gal. Aluminum Twin Tank Electric Portable Air Compressor
The California Air Tools 4610AC Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest air compressors in the industry having only 60 dB of sound. The powerful 1.0 HP (SP-9413) motor operates at only 1,680 RPM creating less noise and less wear. The “New” SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-4610AC Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3,000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures and uneven terrains. The 4.6 Gal. Aluminum (Rust-Free) Air Tank is Lightweight (45.5 lbs.) and very easy to transport. This air compressor is ideal for anyone working inside where noise is a major issue.
- Ultra quiet only 60 dB – less than a normal conversation
- Powerful 1.0 HP (rated/running) – 2.0 HP (peak) motor
- Oil-free pump for cleaner air for better tool operation
- 3.10 CFM at 40 psi 2.20 CFM at 90 psi
- Lightweight 4.6 Gal. aluminum (rust-free) twin tank (45.5 lbs.)
- 120 psi maximum pressure
- Low amp draw-8.5 Amp
- 110-Volt / 60 hz
- Time to fill tank from empty to full 130 seconds
- Recovery time from 90 psi to 120 psi 30 seconds
- Less heat which dissipates more efficiently
- Thermal overload protector
- 2 pressure control gauges
- 2 universal 1/4 quick connectors
- (19.1) x W (16.7 in.) x H (19.7 in.)
- 45.5 lbs.
- Comes complete with air filter
- 1 year limited warranty
Dimensions
| Product Depth (in.) |
16.7 in |
| Product Height (in.) |
19.7 in |
| Product Width (in.) |
19.1 in |
Details
| Air Delivery SCFM @ 40PSI |
3.1 |
| Air Delivery SCFM @ 90PSI |
2.2 |
| Application Use |
Air Brushing, Blow Cleaning, Brad Nailing, Finish Nailing, Hobby Nailing, Hobby Painting, Inflation, Stapling, Surface Prep, Trim |
| Battery Amp Hours |
No Battery |
| Battery/Charger |
Tool Only |
| Charger Included |
Charger Not Included |
| Compressor Tank Capacity (gal.) |
4.6 gal |
| Compressor Type |
Light Duty |
| Compressor Volume Rating |
Quiet |
| Compressor/Air Tool Features |
Automatic Start/Stop, Dual Control, Handle, Oil Free Compressor, Tank Pressure Gauge, Universal Quick Connectors |
| Decibel Rating (Outdoor) |
60 dBA |
| Horsepower (hp) |
1 hp |
| Included in Combo |
Compressor Only |
| Lubrication Type |
Oil less |
| Maximum Pressure (PSI) |
120 PSI |
| Number of Total Batteries Included |
0 |
| Portable |
Yes |
| Power Source |
Electric |
| Power Type |
Corded Electric |
| Product Weight (lb.) |
45.5 lb |
| Stage Count |
Single Stage |
| Tank Style |
Double-Stack |
| Tools Product Type |
Air Compressor |
Additional Resources
From the Manufacturer
- Warranty
- Use and Care Manual
| Brand |
California Air Tools
|
