- Designed as one of the quietest air compressors in the industry
- Oil-free pump 3000 hours before service
- Steel tank for easy transporting

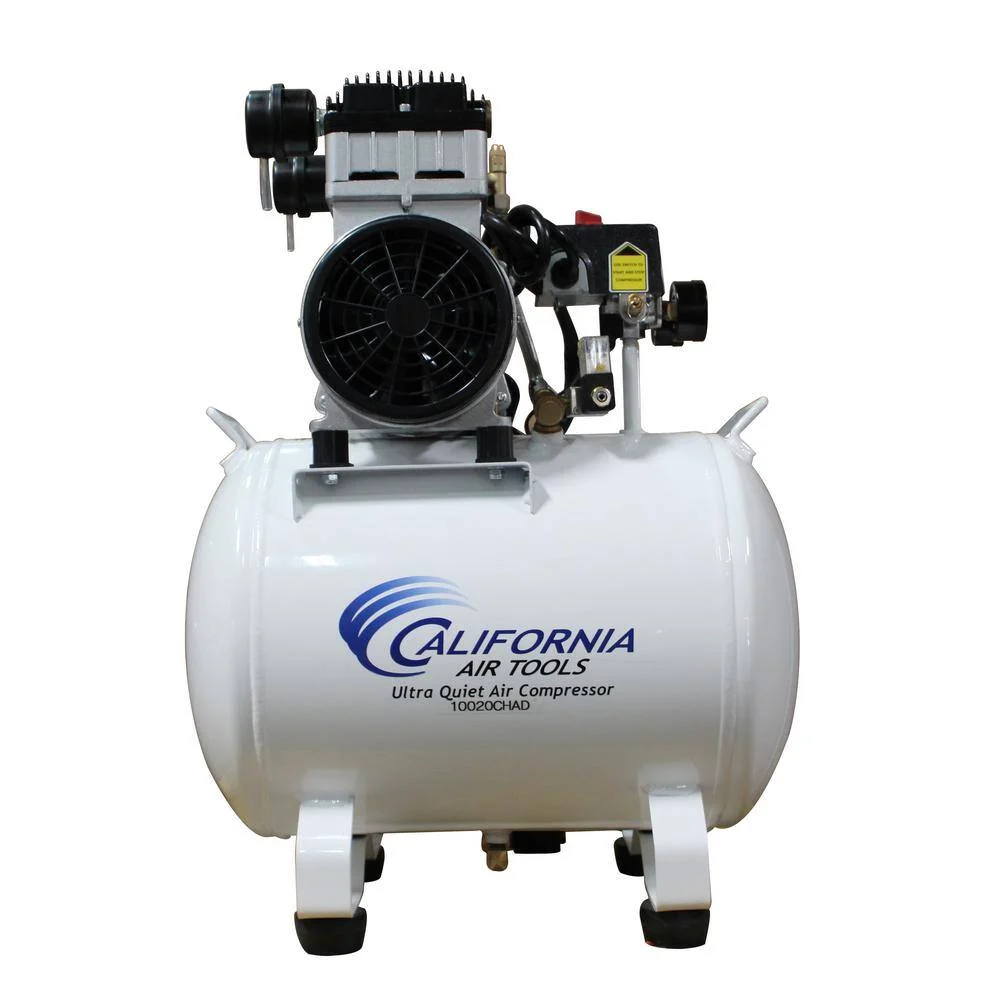

California Air Tools 10020CHAD-22060 10 Gal. 2.0 HP Ultra-Quiet and Oil-Free Electric (220-Volt 60 Hz.) Stationary Air Compressor with Auto Drain
The California Air Tools 10020CHAD-22060 ultra-quiet and oil-free air compressor is designed to be 1 of the quietest 2.0 HP (220-Volt 60 Hz.) air compressors in the industry having only 70 decibels of sound. The powerful 2.0 HP (220-Volts) motor operates at only 1680 RPM creating less noise and less wear. SP series of ultra-quiet air compressor motors have been designed to increase duty cycle and allow for longer continuous run times. The oil-free dual piston pump system is engineered for high performance and durability. The CAT-10020CHAD-22060 air compressor has a oil-free dual piston pump designed to have a life cycle before wear of 3000 plus hours compared to other comparable air compressors with life cycles of 500-hours or less. The easy start valve feature allows for a easier start up using less starting amps. The easy start valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large low profile 10 Gal. steel horizontal air tank makes storing under a bench, desk or shelf very easy. The factory installed California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The 10020CHAD-22060 is designed for the person looking for power, air flow, less service and maintenance with at least 30% less noise.
- Ultra-quiet only 70 dB
- Oil-free pump cleaner air for better tool operation, less maintenance and costs
- Powerful 2.0 HP motor
- 6.40 CFM at 40 psi and 5.30 CFM at 90 psi
- 125 psi maximum pressure
- 10 Gal. horizontal steel air tank
- EZ-1-2301 auto drain valve factory installed
- 2 pressure control gauges 1 universal industrial 1/4 in. quick connector
- Low amp draw – 7 Amp
- 220-Volt 60 Hz
- Easy start valve – for less starting amperage
- 19 in. L x 15 in. D x 26.5 in. H – 75 lbs.
- Time to fill tank from empty to full 120-seconds
- Recovery time from 95 psi to 125 psi – 25-seconds
- 1-year limited warranty
Dimensions
| Product Depth (in.) |
15 in |
| Product Height (in.) |
26.5 in |
| Product Width (in.) |
19 in |
Details
| Air Delivery SCFM @ 40PSI |
6.4 |
| Air Delivery SCFM @ 90PSI |
5.3 |
| Amperage (A) |
7 A |
| Application Use |
Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Finish Nailing, Framing Nailing, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Spraying, Stapling, Surface Prep, Wrenching |
| Battery Amp Hours |
No Battery |
| Charger Included |
Charger Not Included |
| Compressor Tank Capacity (gal.) |
10 gal |
| Compressor Type |
Industrial |
| Compressor Volume Rating |
Quiet |
| Compressor/Air Tool Features |
Automatic Start/Stop, Household Power Cord, Oil Free Compressor, Tank Pressure Gauge, Universal Quick Connectors |
| Condition |
New |
| Decibel Rating (Outdoor) |
70 dBA |
| Horsepower (hp) |
2 hp |
| Included |
No additional components or accessories are included |
| Lubrication Type |
Oil less |
| Maximum Pressure (PSI) |
125 PSI |
| Number of Total Batteries Included |
0 |
| Phase Type |
1 Phase |
| Portable |
No |
| Power Source |
Electric |
| Power Type |
Corded Electric |
| Product Weight (lb.) |
75 lb |
| Reconditioned |
No |
| Stage Count |
Single Stage |
| Tank Material |
Steel |
| Tank Style |
Horizontal |
| Tools Product Type |
Air Compressor |
| Voltage (V) |
220 V |
| Voltage (v) |
220v |
Additional Resources
From the Manufacturer
- Warranty
- Use and Care Manual
- Instructions / Assembly
- Full Product Manual
| Brand |
California Air Tools
|
